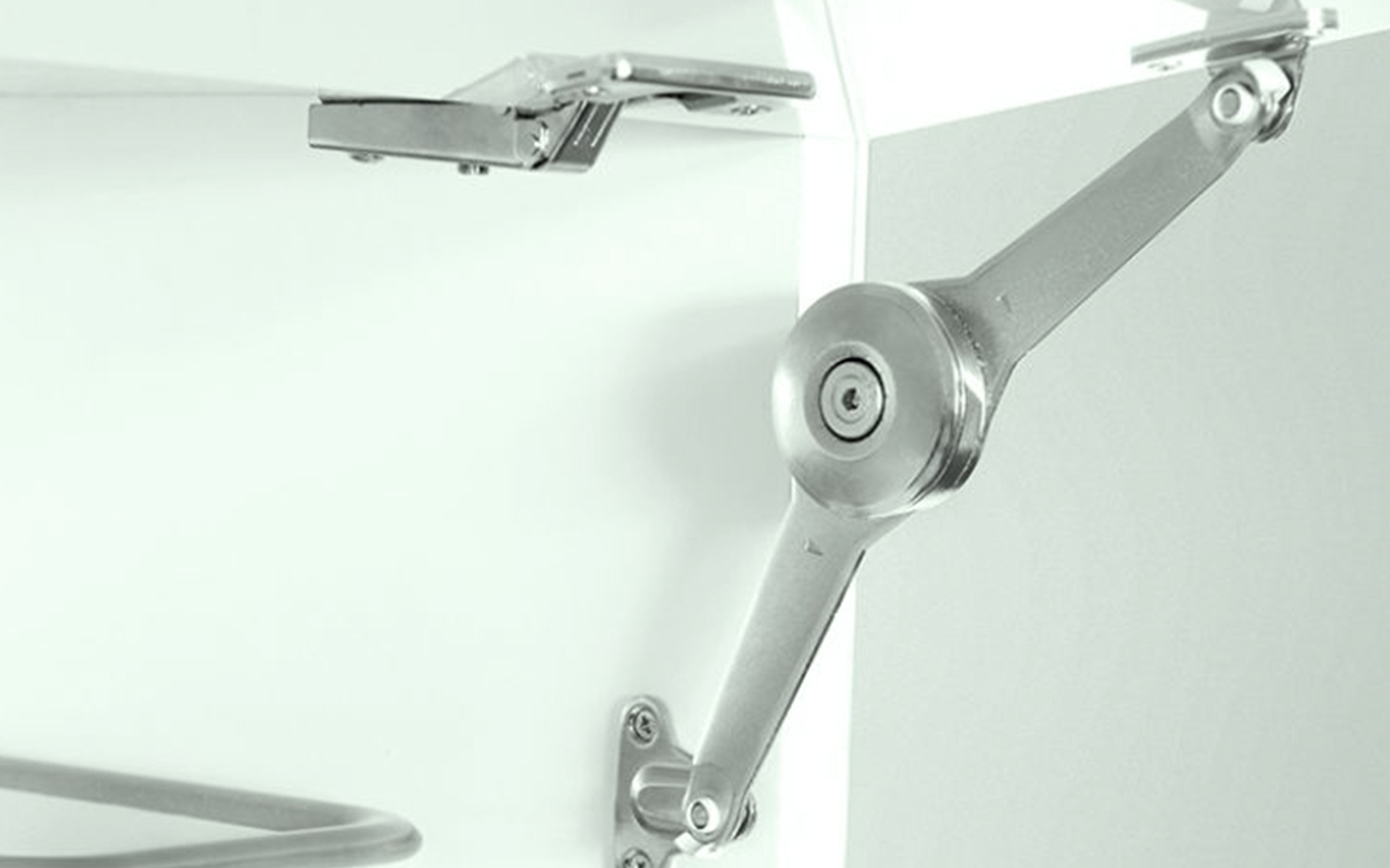

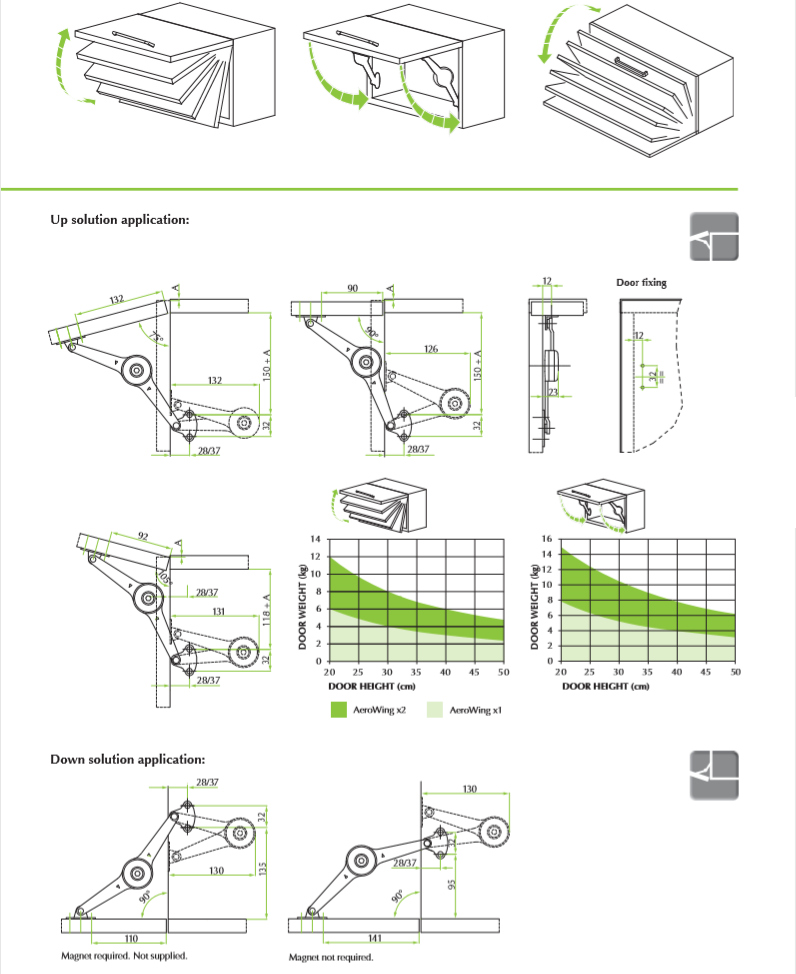

Affordable The new AeroWing system is incredibly affordable and in pleasant contradiction to the current high-end frenzy in that type of application. The system works perfectly well and with an absolute right cost it provides many applications for the forniture of all the whole house. Efficient Whilst high end-solutions perform thanks to massive deployment of mechanism, AeroWing deploys showroom efficiency with very simple means. The functionality is convincing, the showroom effect is exciting and the economic coherence is profit-boosting. Technical specifications The three in one lifter solution: self holding in all positions self lifting and SlowMotion flap with brake 32mm standard cabinet drilling Covers 75°, 90° and 105° angles Combined with SlowMotion hinges, it confers a perfect movement to the door Packing in a kit, consists of: 1 joint AeroWing 1 bracket for cabinet 1 bracket for wooden door 1 bracket for aluminium frame 4 self tapping screws 15mm, 4mm dia Assembly instructions CODE DESCRIPTION 3.595.037 AeroWing Kit. Hole Distance 37mm
