CEMUX H-BOX 167mm Height ‘C’ Slimline Soft Close Drawer System

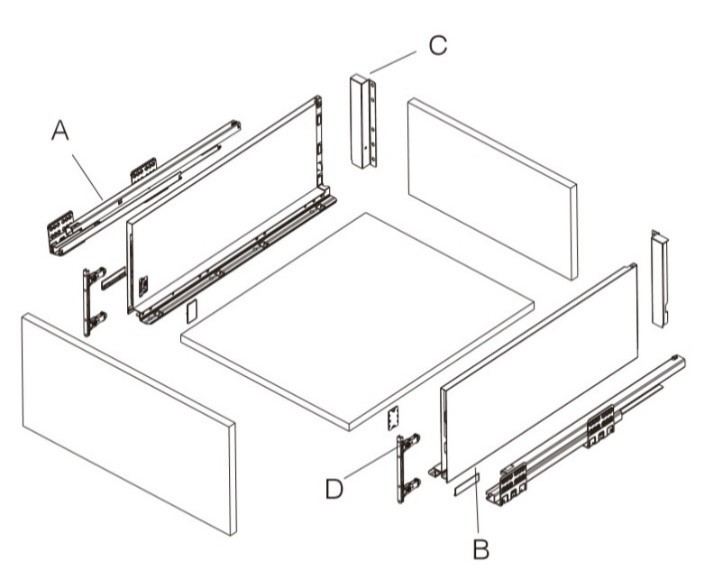

FEATURES Perfect sliding qualities with precision full extension runners incorporating silent & gradual closing Colour – White Quick installation and easy dismantling /- 2mm up & down adjustment 167mm High – 13mm panel width /- 1.5mm up & down adjustment /- 1.5mm left & right adjustment Integrated 3D front panel adjustment 40Kg dynamic loading capacity and 100,000 cycles tested. Sizes available 270mm – 550mm CODE DESCRIPTION PKG Height ‘C’ – 167mm 12.H1303C.270 CEMUX H-BOX Soft Close Drawer System 167H x 270mm – White 1 Set 12.H1303C.300 CEMUX H-BOX Soft Close Drawer System 167H x 300mm – White 1 Set 12.H1303C.350 CEMUX H-BOX Soft Close Drawer System 167H x 350mm – White 1 Set 12.H1303C.400 CEMUX H-BOX Soft Close Drawer System 167H x 400mm – White 1 Set 12.H1303C.450 CEMUX H-BOX Soft Close Drawer System 167H x 450mm – White 1 Set 12.H1303C.500 CEMUX H-BOX Soft Close Drawer System 167H x 500mm – White 1 Set 12.H1303C.550 CEMUX H-BOX Soft Close Drawer System 167H x 550mm – White 1 Set One Package contains 1.       Left / Right drawer runners 2.       Left / Right 167mm high drawer sides 3.       Left / Right rear brackets 4.       Left / Right front fixing brackets with dowels 5.       Installation instructions
