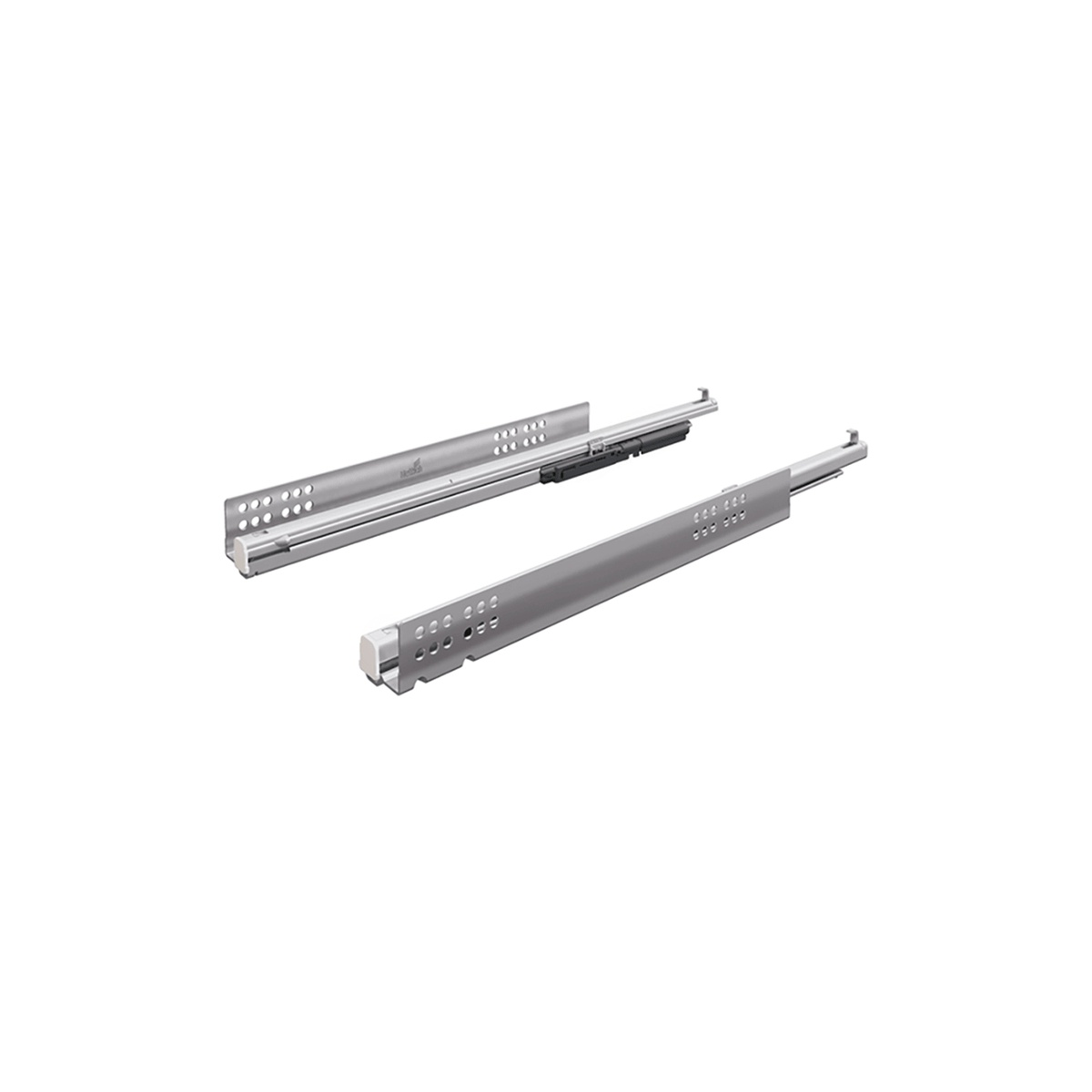

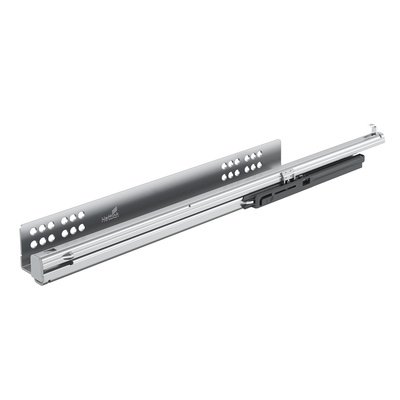

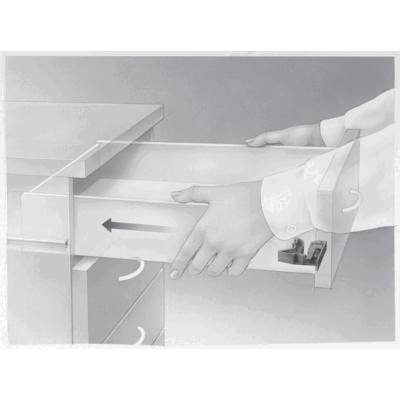

Quadro V6 drawer runner Precision as a matter of principle: thanks to its ball bearing principle, a Quadro runner guarantees lasting top performance and the last word in convenience for drawers. Elegantly concealed underneath the drawer bottom panel. Load Capacity – 30 Kgs Features: Slide on installation with catches and tool-less height adjustment Integrated Silent System Optional: catch and plug for pull-out shelves Optional: Pull-out shelf locating catch Suitable for drawers with a side profile thickness of up to 16 mm Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation Load capacity to EN 15338, Level 3 Galvanised steel Sizes available from 300mm-600mm Price includes LH & RH Slides L&R ClipsAdvice: Using catches/plugs for pull-out shelves reduces the length of the pull-out shelf by 12 mm (nominal length NL – 12 mm)
