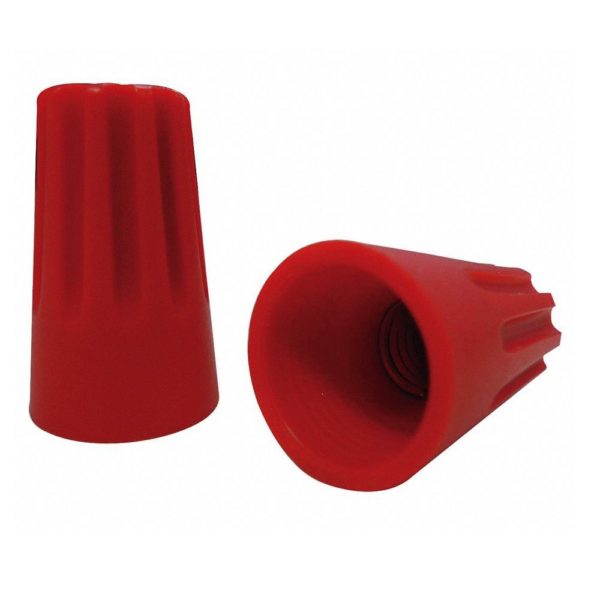

Twist Nut Electrical Wire Connector Terminals Cap Spring Insert

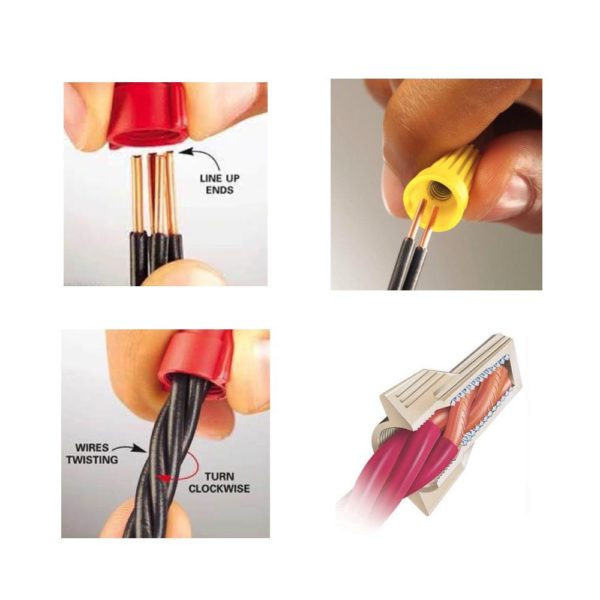

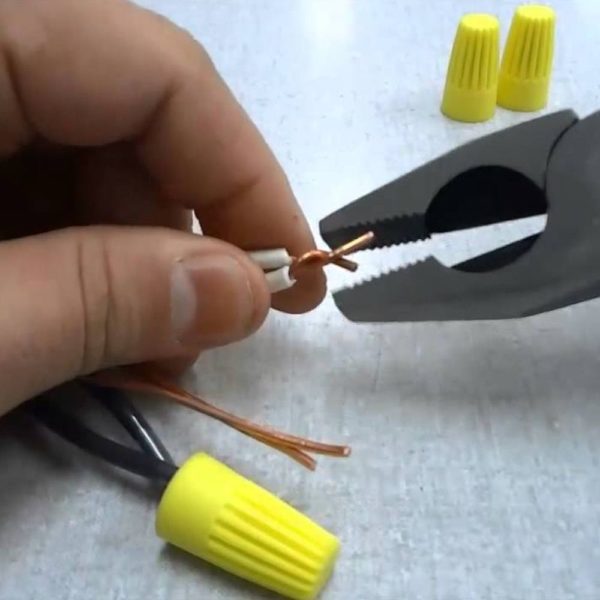

Description TWIST-ON Wire Connector is the Industry Standard for Electrical Wiring Screw on wire Connectors for Quick Assembly, 600V, Wire combinations: 22 AWG thru 14 AWG Pressure-Type Wire Connector on the following SOLID and/or STRANDED COPPER TO COPPER CONDUCTOR wire combinations PRODUCT FEATURES: Fixed Precise Conical Wire Spring, No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying INSTALLATION INSTRUCTIONS: 1. Turn off power before installing or removing connectors. 2. Strip solid wire about 9MM and smaller wires, about 12MM. 3. Pre-twisting if necessary. Hold stripped wires together with ends even. Lead stranded wires slightly. 4. Align any frayed strands or conductors. 5. Push wires into connector and screw on until two twists are visible in wires. Watch the video on how to use: Like this:Like Loading...
